Butler-LS - Rings

Engine Components- Internal - Rings

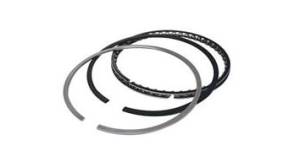

Piston rings have been an area of considerable focus and development. Piston rings account for a large proportion of the total friction in the engine. This high friction can compromise needed sealing and deminish the life of the engine. Piston rings are subject to wear as they move up and down the cylinder bore. This wear can mean the loss of valuable horsepower. To combat this Butler LS partners with Total Seal to offer a full line of piston rings for your new build or rebuilding your current engine. We offer Total Seal rings in several types of materials and coatings; CR-Classic Race(Moly coated top ring), CS-Classic Steel (AP Stainless Steel Top), and CT-Classic TNT (Heat Treated Ductile Iron) . Most of these are also offered in M-Top Gapless sets.



Select a Sub-Category

View
Engine Components- Internal - Rings - Classic Race Rings
Piston rings have been an area of considerable focus and development. Piston rings account for a large proportion of the total friction in the engine. This high friction can compromise needed...More Details »
Engine Components- Internal - Rings - Gapless Top Rings
Piston rings have been an area of considerable focus and development. Piston rings account for a large proportion of the total friction in the engine. This high friction can compromise needed...More Details »
Engine Components- Internal - Rings - AP Stainless Steel Top Rings
Piston rings have been an area of considerable focus and development. Piston rings account for a large proportion of the total friction in the engine. This high friction can compromise needed...More Details »
Engine Components- Internal - Rings - TNT Top Rings
Piston rings have been an area of considerable focus and development. Piston rings account for a large proportion of the total friction in the engine. This high friction can compromise needed...More Details »

Popular Brands:


More About Rings

Classic Race-

  • Conventional Ring Set
  • High Performance Street Applications
  • Classic race sets in most popular bore sizes feature
    • Ductile plasma moly top rings
    • conventional reverse torsional taper face 2nd rings
    • flex vent style 3 piece oil rings available in standard, low and light tension for most popular bore sizes
    • Available in file to fit or drop in sets depending on your bore size.

Classic Steel Top- AP Stainless

  • Manufactured from 440B stainless steel
  • Stronger, Longer life and Most Precise Tolerances
  • Saves money (fewer teardowns)
  • Thinner, Flatter and Lighter
  • Conforms Better to the Cylinder Wall
  • 1.0mm and larger available any bore size 2.992"-5.125"
  • Special axial sizing upon request
  • Works well in all applications, notably dirt environments
  • Easier on cylinders, reducing bore wear
  • Uses C33 face coating: doesn't allows dirt to penetrate coating
  • Available in Gapless or Conventional

Classic TNT-

  • Centrifugally cast and then heat treated to provide the most uniform grain structure of any martensitic ductile iron ring
  • Engineered for extreme abuse such as nitrous oxide, turbocharged, supercharged and high cylinder pressure applications
  • Tighter tolerances and PVD coatings
  • 0.8mm available in almost any bore size
  • 1.0mm and larger in any bore size
  • Special axial sizing upon request

Top Gapless-

Total Seal's patented Gapless ® Piston rings provide increased performance through unmatched sealing of the cylinder and combustion gasses in the combustion chamber. Increased horsepower and torque along with longer engine life are just a couple of the reasons why Total Seal's Gapless ® Piston rings are the best rings available. Here are many more.
  • Increased horsepower and torque
  • Longer engine life
  • Saves money (fewer teardowns)
  • Improved consistenny
  • Cleaner engine oil
  • Longer ring life
  • Better Oil control
  • Less friction
  • Lower engine oil temperatures
  • Wider torque curve
  • More engine vacuum
  • Increased intake signal
